Crossplane Integration

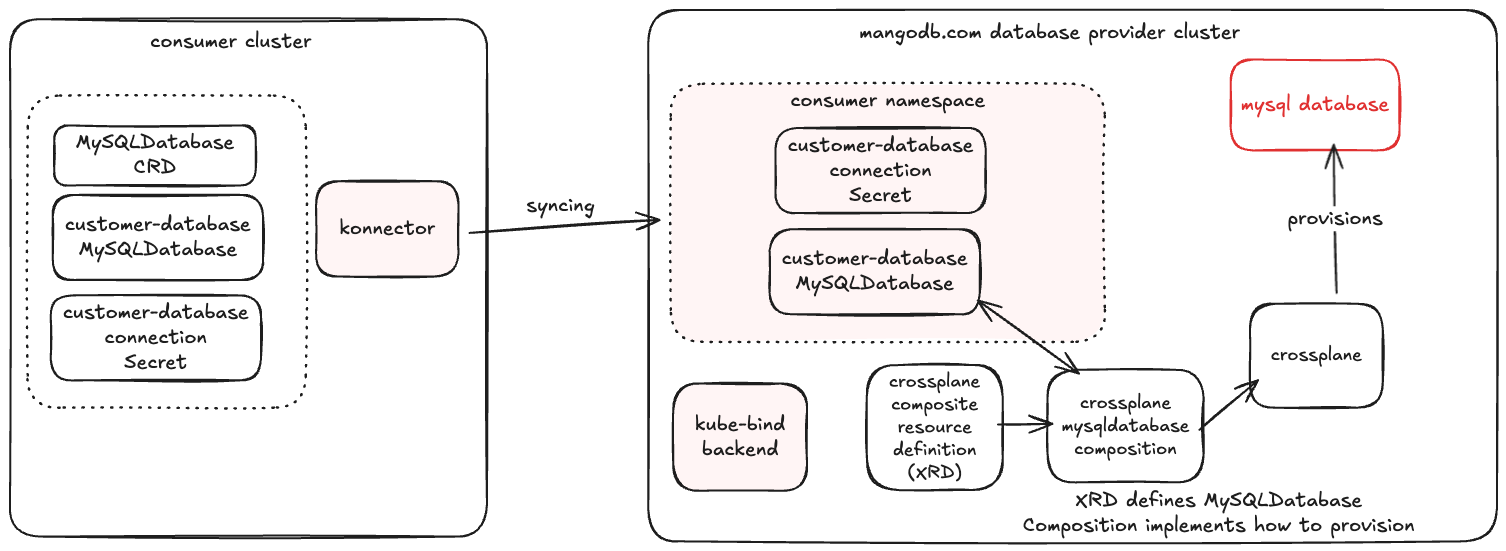

This document provides an example deployment walkthrough showing how to integrate kube-bind with Crossplane and how to deploy a sample managed MySQL resource using two kind clusters: a provider cluster (where Crossplane runs and kube-bind backend to export APIs) and a consumer cluster (which allows to bind those APIs using kube-bind konnector).
Note
This walkthrough uses namespaced Crossplane resources so the example stays in the same default namespace on both clusters.
Setup
The following sections will guide you through the one-time setup that is required for providing MySQL databases using Crossplane and kube-bind.
Follow the prerequisites, then select the provider:
Install Crossplane
Install Crossplace in your Kubernetes cluster where the kube-bind backend will run. You can follow the official installation guide from the Crossplane documentation.
helm repo add crossplane-stable https://charts.crossplane.io/stable
helm repo update
helm install crossplane crossplane-stable/crossplane \
--namespace crossplane-system \
--create-namespace
Install Crossplane provider-sql
In this example, we will set up MySQL database:
kubectl apply -f - <<EOF
apiVersion: pkg.crossplane.io/v1
kind: Provider
metadata:
name: provider-sql
spec:
package: xpkg.upbound.io/crossplane-contrib/provider-sql:v0.13.0
EOF
Deploy also Crossplane function for Go templating:
kubectl apply -f - <<EOF
apiVersion: pkg.crossplane.io/v1
kind: Function
metadata:
name: function-go-templating
spec:
package: xpkg.crossplane.io/crossplane-contrib/function-go-templating:v0.9.2
EOF
Setup the MySQL Deployment
Create and set up Deployment, PersistentVolume, PersistentVolumeClaim and Service for the MySQL instance.
kubectl apply -f - <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: mysql
spec:
selector:
matchLabels:
app: mysql
strategy:
type: Recreate
template:
metadata:
labels:
app: mysql
spec:
containers:
- image: mysql:9
name: mysql
env:
# Use secret in real usage
- name: MYSQL_ROOT_PASSWORD
value: password
ports:
- containerPort: 3306
name: mysql
volumeMounts:
- name: mysql-persistent-storage
mountPath: /var/lib/mysql
volumes:
- name: mysql-persistent-storage
persistentVolumeClaim:
claimName: mysql-pv-claim
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: mysql-pv-volume
labels:
type: local
spec:
storageClassName: manual
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
hostPath:
path: "/mnt/data"
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: mysql-pv-claim
spec:
storageClassName: manual
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
---
apiVersion: v1
kind: Service
metadata:
name: mysql
spec:
ports:
- port: 3306
selector:
app: mysql
clusterIP: None
EOF
Configure Crossplane
Time to create a Crossplane XRD and Composition for a managed MySQL database. Apply both manifests:
kubectl apply -f - <<EOF
apiVersion: apiextensions.crossplane.io/v2
kind: CompositeResourceDefinition
metadata:
name: mysqldatabases.mangodb.com
spec:
scope: Namespaced
group: mangodb.com
names:
kind: MySQLDatabase
plural: mysqldatabases
versions:
- name: v1
served: true
referenceable: true
schema:
openAPIV3Schema:
type: object
properties:
spec:
type: object
properties:
name:
description: The name of the database to create
type: string
required:
- name
status:
type: object
properties:
ready:
description: Whether the database setup is ready
type: boolean
connectionSecret:
description: Name of the connection secret
type: string
EOF
kubectl apply -f - <<'EOF'
apiVersion: apiextensions.crossplane.io/v1
kind: Composition
metadata:
name: mysql-database-simple
spec:
compositeTypeRef:
apiVersion: mangodb.com/v1
kind: MySQLDatabase
mode: Pipeline
pipeline:
- functionRef:
name: function-go-templating
input:
apiVersion: gotemplating.fn.crossplane.io/v1beta1
inline:
template: |
{{ $objName := .observed.composite.resource.metadata.name }}
{{ $dbName := .observed.composite.resource.spec.name }}
{{ $objNamespace := .observed.composite.resource.metadata.namespace }}
{{ $userName := printf "%s-user" $dbName }}
{{ $secretName := printf "%s-secret" $dbName }}
{{ $credentials := printf "%s-credentials" $objName }}
---
apiVersion: mysql.sql.m.crossplane.io/v1alpha1
kind: Database
metadata:
annotations:
gotemplating.fn.crossplane.io/composition-resource-name: database
{{ if eq (.observed.resources.database | getResourceCondition "Synced").Status "True" }}
gotemplating.fn.crossplane.io/ready: "True"
{{ end }}
name: {{ $dbName }}
namespace: default
spec:
forProvider: {}
providerConfigRef:
kind: ProviderConfig
name: mysql-cfg
---
apiVersion: v1
kind: Secret
metadata:
annotations:
gotemplating.fn.crossplane.io/composition-resource-name: secret-exposed
gotemplating.fn.crossplane.io/ready: "True"
labels:
kube-bind.io/selector: consumer-database
namespace: default
name: {{ $credentials }}
{{ if eq $.observed.resources nil }}
stringData: {}
{{ else }}
stringData:
username: {{ ( index $.observed.resources "user" ).connectionDetails.username }}
password: {{ ( index $.observed.resources "user" ).connectionDetails.password }}
port: {{ ( index $.observed.resources "user" ).connectionDetails.port }}
endpoint: {{ ( index $.observed.resources "user" ).connectionDetails.endpoint }}
{{ end }}
---
apiVersion: v1
kind: Secret
metadata:
annotations:
gotemplating.fn.crossplane.io/composition-resource-name: secret
gotemplating.fn.crossplane.io/ready: "True"
namespace: default
name: {{ $secretName }}
data:
password: {{ randAlphaNum 16 | b64enc }}
---
# Hardcoded demo Secret used by ProviderConfig (in default namespace)
apiVersion: v1
kind: Secret
metadata:
annotations:
gotemplating.fn.crossplane.io/composition-resource-name: provider-db-conn
gotemplating.fn.crossplane.io/ready: "True"
namespace: default
name: db-conn
type: Opaque
stringData:
endpoint: mysql.default.svc.cluster.local
port: "3306"
username: root
password: password
---
apiVersion: mysql.sql.m.crossplane.io/v1alpha1
kind: User
metadata:
annotations:
gotemplating.fn.crossplane.io/composition-resource-name: user
{{ if eq (.observed.resources.user | getResourceCondition "Synced").Status "True" }}
gotemplating.fn.crossplane.io/ready: "True"
{{ end }}
name: {{ $userName }}
namespace: default
spec:
forProvider:
passwordSecretRef:
name: {{ $secretName }}
key: password
writeConnectionSecretToRef:
name: {{ printf "%s-connection-secret" $dbName }}
providerConfigRef:
kind: ProviderConfig
name: mysql-cfg
---
apiVersion: mangodb.com/v1
kind: MySQLDatabase
metadata:
name: {{ $objName }}
namespace: default
status:
ready: {{ and (eq (.observed.resources.database | getResourceCondition "Synced").Status "True") (eq (.observed.resources.user | getResourceCondition "Synced").Status "True") }}
connectionSecret: {{ printf "%s-connection-secret" $dbName }}
---
apiVersion: mysql.sql.m.crossplane.io/v1alpha1
kind: ProviderConfig
metadata:
name: mysql-cfg
annotations:
gotemplating.fn.crossplane.io/composition-resource-name: provider-cfg
gotemplating.fn.crossplane.io/ready: "True"
spec:
credentials:
source: MySQLConnectionSecret
connectionSecretRef:
name: db-conn
tls: preferred
kind: GoTemplate
source: Inline
step: create-mysql-resources
EOF
Export the Database API
Wait for Crossplane to create the CRD and label that CRD, not the XRD:
kubectl wait --for=create crd/mysqldatabases.mangodb.com --timeout=120s
kubectl wait --for=condition=Established crd/mysqldatabases.mangodb.com --timeout=120s
kubectl label crd mysqldatabases.mangodb.com core.kbind.io/exported=true --overwrite
Create a catalog Export for the mysqldatabases.mangodb.com resource:
kubectl apply -f - <<EOF
apiVersion: catalog.kbind.io/v1alpha1
kind: Export
metadata:
name: mysqldatabase
spec:
title: MySQL Database
description: Managed MySQL databases provisioned through Crossplane.
apis:
- name: mysqldatabases.mangodb.com
defaults:
relatedResources:
- group: ""
resource: secrets
direction: FromProvider
selector:
labelSelector:
matchLabels:
kube-bind.io/selector: consumer-database
EOF
This example keeps the provider Secret label used by the original walkthrough. v2 related-resource selectors are label/name based, they do not follow JSONPath or limit credential RBAC.
Usage
Now that everything is set up, users can begin to bind to your backend and begin consuming the new API.
Login to kube-bind
Bind the Export
The command applies the bundle for the mysqldatabase Export to the consumer cluster. It assumes a matching konnector is already installed separately.
Note
v2 keeps namespace and name unchanged. This walkthrough keeps the consumer and provider objects in default rather than the old prefixed namespace form from the legacy docs.
Create a Managed Database
Verify that a mysqldatabases.mangodb.com CRD is synced to the consumer cluster:
kubectl get crd mysqldatabases.mangodb.com
NAME CREATED AT
mysqldatabases.mangodb.com 2025-11-27T14:22:18Z
Order a new consumer database instance in the consumer cluster:
kubectl apply -f - <<EOF
apiVersion: mangodb.com/v1
kind: MySQLDatabase
metadata:
name: consumer-database
namespace: default
spec:
name: consumer-database
EOF
Wait for Provisioning
The kube-bind konnector and the Crossplane control plane should now be busy provisioning your database. You can observe the provisioned database and connection Secret in the provider cluster, because v2 preserves namespace/name, the synced MySQLDatabase stays in default:
kubectl --context=provider -n default get mysqldatabases.mangodb.com consumer-database
NAME SYNCED READY COMPOSITION AGE
consumer-database True True mysql-database-simple 18m
kubectl --context=consumer -n default get secrets
NAME TYPE DATA AGE
consumer-database-credentials Opaque 4 18m
You should see your MySQL instance created in the provider cluster and a secret with connection details, once Crossplane finishes provisioning of the database.
Observe that the requested Secret with connection details for user is synced to consumer cluster.
kubectl get secrets
NAMESPACE NAME TYPE DATA AGE
default consumer-database-credentials Opaque 4 5m21s
For troubleshooting and more information, see Troubleshooting.
